1xN Or 2xN Fiber PLC Splitter 1x4 For FTTx Solution Simple Easy Connection

Product Categories
SL RELIANCE LTD
Contact Now

1xN Or 2xN Fiber PLC Splitter 1x4 For FTTx Solution Simple Easy Connection

  • 1
  • 2
  • 3

Brand Name : SLR

Model Number : SL-mini PLC-1x4 APC

Certification : CE ROHS

Place of Origin : GUANGDONG CHINA

MOQ : 500PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 7000pcs/day

Delivery Time : 8 days after payment

Packaging Details : Blister or Bag packing

Product Name Name : 1x4 SC APC Mini Fiber PLC Splitter

Type : mini Steel Tube type PLC Splitter

Model Types : 1xN or 2xN splitter

Parameter : 1x4 (1*2 1*8 1*16 1*64 1*28 2*4 2*8 2*32. also ok)

Fiber Type : SM ,( G657A1/G652D/G657A2)

Cable Diameter : 900um (250um , 2.0mm 3.0mm)

Cable Length : 0.5/1.0/1.5/2.0m,custom-designed

Connector : SC APC

Contact Now

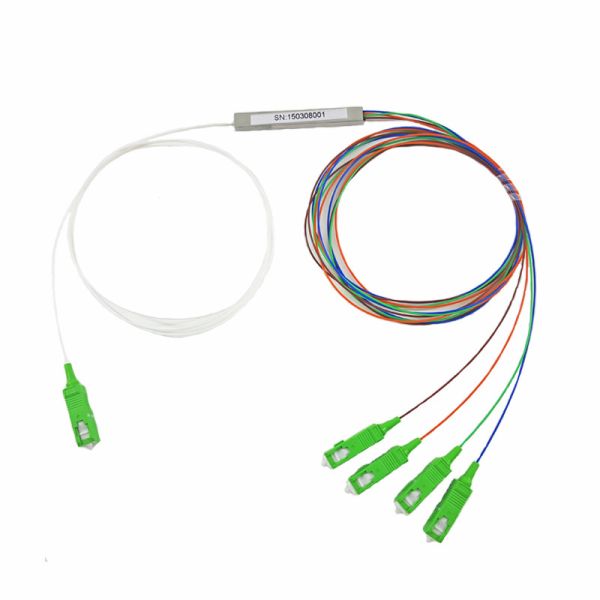

Mini 1x4 Fiber PLC Splitter Steel Tube Fiber Optic SC/APC 1 4 PLC Splitter

The bare PLC splitter can allow a single GPON network interface to be shared among many subscribers and allow service providers to enable bandwidth-intensive applications.

Simple and Easy Connection
Bare PLC splitter can be easily
installed in fiber splice closure
or joint box for space saving.

Best Alternative for FTTx Solution


Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives
carriers the ability to split optical signals to multiple homes or businesses.

We provides whole series of 1xN and 2xN splitter

White Color cable

1xN Or 2xN Fiber PLC Splitter 1x4 For FTTx Solution Simple Easy Connection

Color Cable

1xN Or 2xN Fiber PLC Splitter 1x4 For FTTx Solution Simple Easy Connection

products that are tailored for specific applications.

Specifications:


PLC splitter
1.smaller size
2.lower loss of polarization and insertion
3.good directing fuction
4.stable and reliable.

1xN Or 2xN Fiber PLC Splitter 1x4 For FTTx Solution Simple Easy Connection

Application:


• Fiber Optic CATV;
• Fiber to the home (FTTH);
• Passive Optical Networks;
• Fiber communication systems;
• Local Areal Networks (LAN)

Feature:


· Low insertion loss
· Low Polarization Dependent Loss
· Excellent Environmental Stability
· Excellent Mechanical Stability
· Telcordia GR-1221 and GR-1209
· Available in dual/three wavelength operation
· Optional connectors termination upon request
· Available in 250um & 900um fiber, 2mm or 3mm

1xN Or 2xN Fiber PLC Splitter 1x4 For FTTx Solution Simple Easy Connection

Parameters Unit Specification (P Grade)
Operating Wavelength (nm) nm 1260~1650
Channel Number 1X2 1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 4.1 7.4 10.5 13.8 17.1 20.4
Insertion Loss without Connector (Max) dB 3.8 7.1 10.2 13.5 16.8 20.1
Uniformity (Max) dB 0.6 0.7 0.8 1 1.5 2
PDL dB 0.2 0.2 0.2 0.3 0.3 0.3
Return Loss dB ≥45(PC)；50(UPC)；60(APC)
Directivity dB ≥ 55
Packaging Dimension (LXWXH) mm 60x7x4 60x7x4 60x7x4 60x12x4 80x20x6 100x40x6

Parameters Unit Specification (P Grade)
Operating Wavelength (nm) nm 1260~1650
Channel Number 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss with Connector (Max) dB 4.4 7.7 10.8 14.1 17.4 20.6
Insertion Loss without Connector (Max) dB 4.3 7.4 10.5 13.8 17.1 20.3
Uniformity (Max) dB 0.6 0.7 0.8 1 1.5 2
PDL dB 0.2 0.2 0.2 0.3 0.3 0.5
Return Loss dB ≥45(PC)；50(UPC)；60(APC)
Directivity dB ≥ 55
Packaging Dimension (LXWXH) mm 60x7x4 60x7x4 60x7x4 60x12x4 80x20x6 100x40x6

Enviroment Conditions
Operationg Temperature ℃ -40 ~ +85
Operationg Temperature ℃ -40 ~ +85
Operating Humidity %RH ≤ 93
Storage Humidity %RH ≤ 93

Cable Info
Fiber Type G 657A
Pigtail Cable 900 um
Connector SC/APC
2xN Splitter Only Single Chip

1xN Or 2xN Fiber PLC Splitter 1x4 For FTTx Solution Simple Easy Connection 1xN Or 2xN Fiber PLC Splitter 1x4 For FTTx Solution Simple Easy Connection
