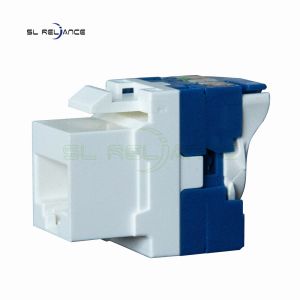

Rotary CAT6 UTP RJ45 Keystone Jack

Product Categories

SL RELIANCE LTD

Contact Now

Brand Name : SL

Model Number : SL-JACK-2085C6

Certification : CE ROHS

Place of Origin : GUANGDONG CHINA

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/A

Supply Ability : 100K PCS per WEEK

Delivery Time : 3-5 Days after payment

Packaging Details : 1000PCS/CARTON,

Product name : Rotary UTP CAT6 Tooless Keystone Jack

Model : 2085C6

Shielded : UTP Rotary Type

Application : Network Cabling Systems

Category : Cat6 tooless

Connector type : RJ45

Test : Fluke passed

Housing material : ABS / PC

Installation : Toolless

Oem/odm : Available

Contact Now

Rotary CAT6 UTP Keystone Jack Rotate Tool Less Type Keystone Jack Modular RJ45 Connector

Features:
1: Small and high end form
2: Professional design on PCB and JACk
3: With High reliable performance

Standards:
1: ANSI/TIA-568-C.2
2: ISO/IEC 11801
3: YD/T 926.3-2009
4:ISO/IEC 60603-7 Compliant
5: RoHS Directive 2002/95/EC/Compliant

Model Number	SL2085C6
Name	Keystone Jack
TYPE	UTP unshieled
Category	6
Material	ABS +PC
Spring	Phosphor Bronze & Gold-painted
Wiring mode:	T568A/B
IDC Terminal	22-26 AWG Cable
IDC Pin:	Phosphor Bronze & Tinned
RJ45 Insert pin	8P8C 8" Gold Plated
Color	WHITE
Test	Channel test and Flukee test

Rotary CAT6 UTP RJ45 Keystone Jack

Electrical
Voltage Rating :	AC 125V
Current Rating :	1.5 AMPS
Insulation Resistance:	500MΩ Min
Withstand Voltage:	DC 1000V RMS 50-60Hz Min
Contact Resistange:	20MΩ Max
Mechanical
Insertion Force:	2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Retention Strength:	70N between jack and plaug;60N between wire and IDC
Durability:	Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
Wire:	AWG 24-26
Material
Housing:	PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0)
IDC Hosing:	PC(UL94V-0);PBT(UL94V-0)
Spring Wire:	T=0.35mm phosphor bronze alloy selective gold 0.45 dia phosphor bronze gold plating over nickel
IDC Contact :	Phosphor bronze;Nickel plating
Shielding:	T=0.25mm copper alloy with tin plated gold
Plating :	3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Working Environment
Temperature:	-10°c-60°c
Humidity:	10-90%

Rotary CAT6 UTP RJ45 Keystone Jack
